Pressure Gauges
CS Series Pressure Gauges 2.5"
-30inHg Pressure Gauge 2.5" Black Steel
Dial: 2.5" 63mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/-1bar/-30inHg

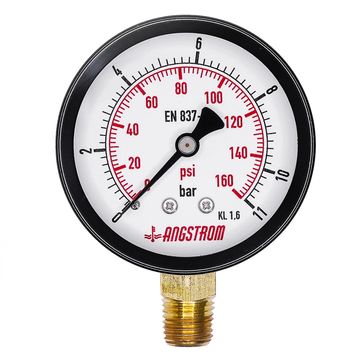

11bar Pressure Gauge 2.5" Black Steel
Dial: 2.5" 63mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/11bar/160psi

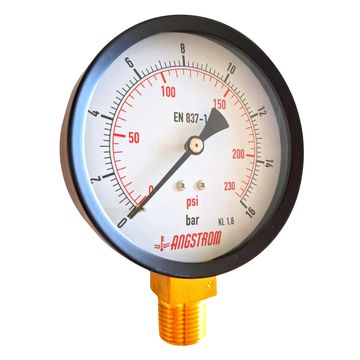

16bar Pressure Gauge 2.5" Black Steel
Dial: 2.5" 63mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi
20bar Pressure Gauge 2.5" Black Steel
Dial: 2.5" 63mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/20bar/300psi
CS Series Pressure Gauges 4"

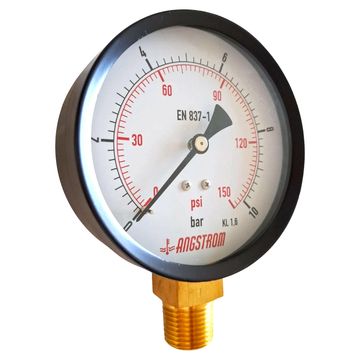

10bar Pressure Gauge 4" Black Steel
Dial: 4" 100mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/10bar/150psi
16bar Pressure Gauge 4" Black Steel
Dial: 4" 100mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi

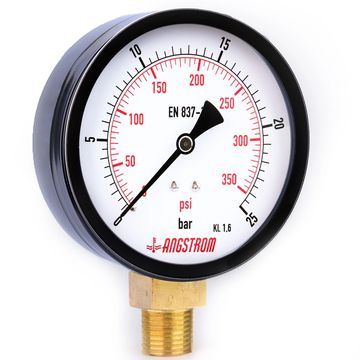

25bar Pressure Gauge 4" Black Steel
Dial: 4" 100mm
Case: Black Steel
Window: Glass
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/25bar/350psi
CAP Series Pressure Gauges

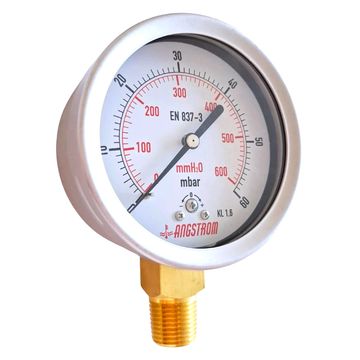

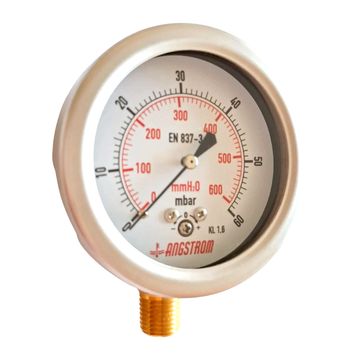

60mbar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/60mbar/600mmH2O

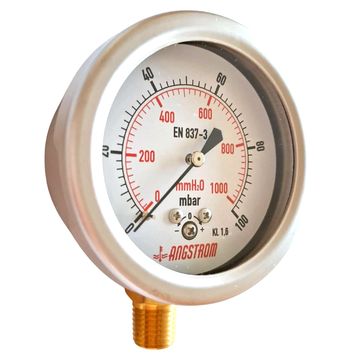

100mbar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/100mbar/1000mmH2O

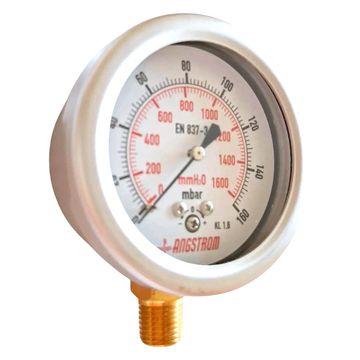

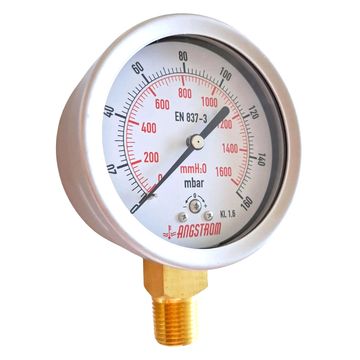

160mbar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/160mbar/1600mmH2O
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/250mbar/2500mmH2O

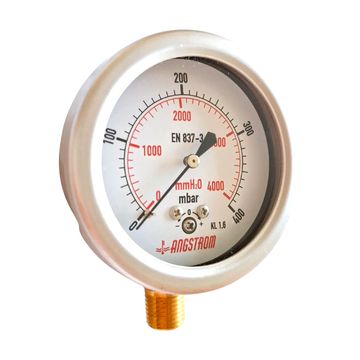

400mbar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/400mbar/4000mmH2O

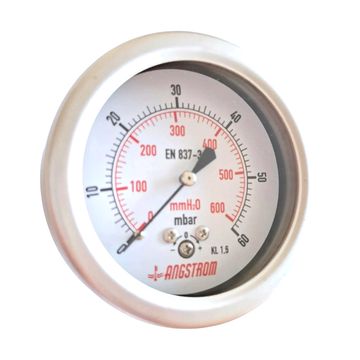

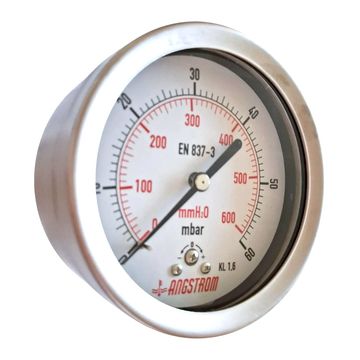

60mbar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/60mbar/600mmH2O

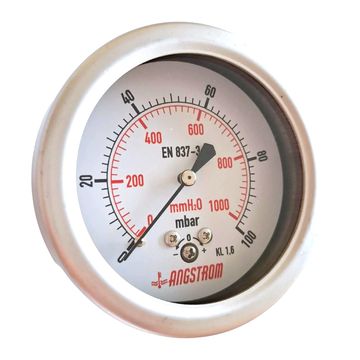

100mbar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/100mbar/1000mmH2O

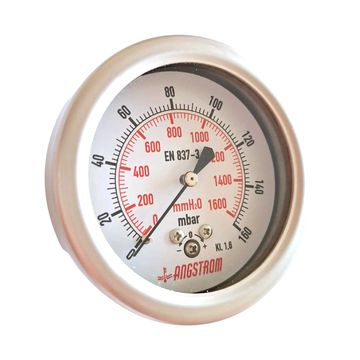

160mbar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/160mbar/1600mmH2O

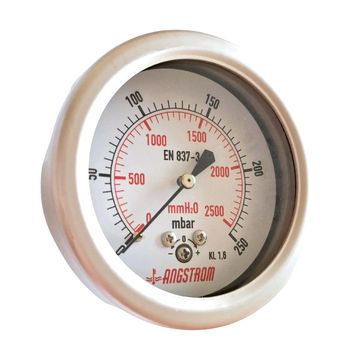

250mbar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/250mbar/2500mmH2O

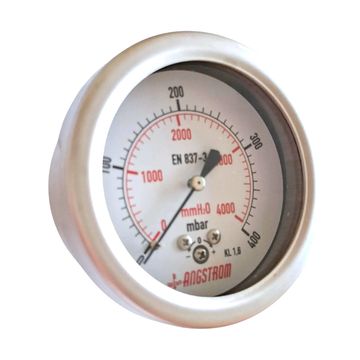

400mbar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/400mbar/4000mmH2O
60mbar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/60mbar/600mmH2O

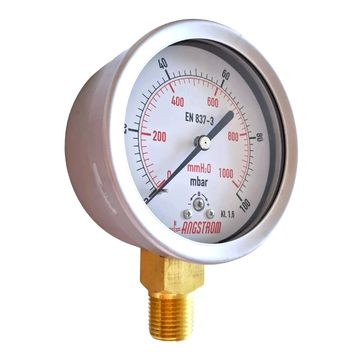

100mbar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/100mbar/1000mmH2O
160mbar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/160mbar/1600mmH2O
250mbar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/250mbar/2500mmH2O
400mbar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/400mbar/4000mmH2O
60mbar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/60mbar/600mmH2O
100mbar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/100mbar/1000mmH2O

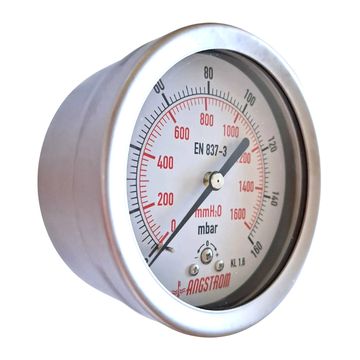

160mbar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/160mbar/1600mmH2O

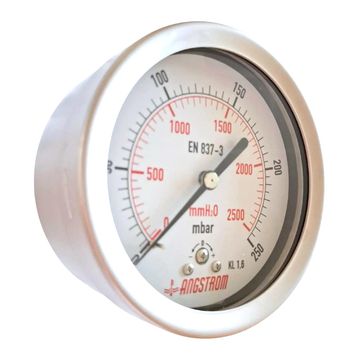

250mbar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/250mbar/2500mmH2O

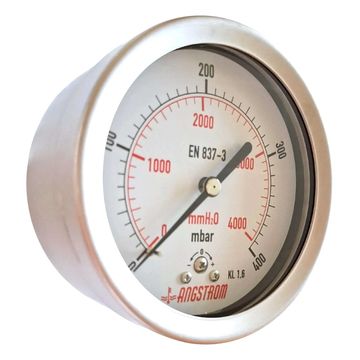

400mbar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel
Window: Glass
Movement: Capsule Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/400mbar/4000mmH2O
SS Series Pressure Gauges 2.5"

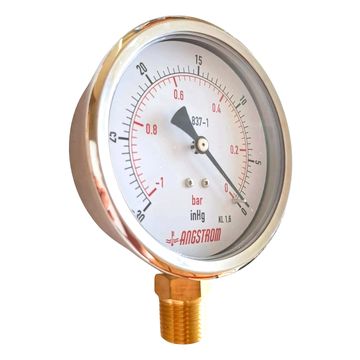

-30inHg Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/-1bar/-30inHg

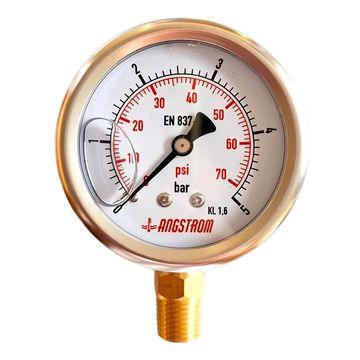

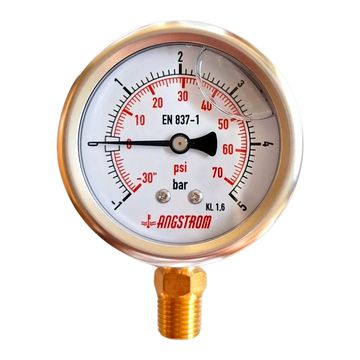

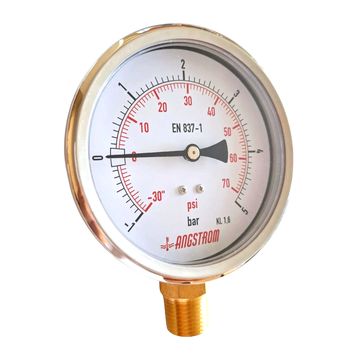

-1/5bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: -1/5bar/70psi

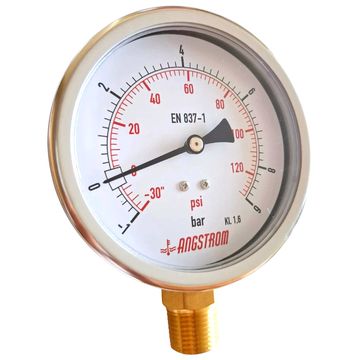

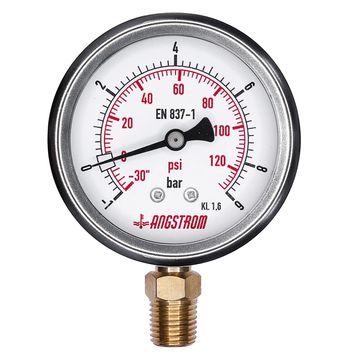

-1/9bar Compound Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: -1/9bar/120psi

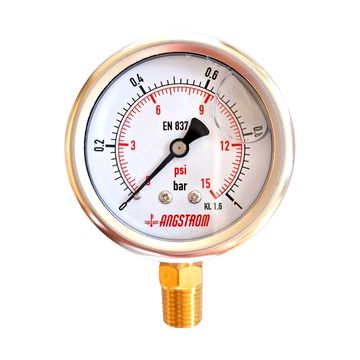

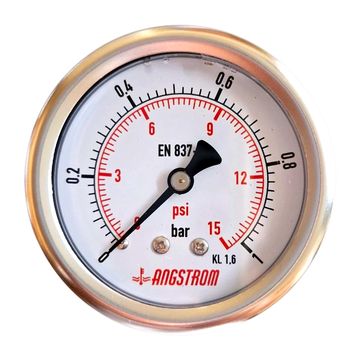

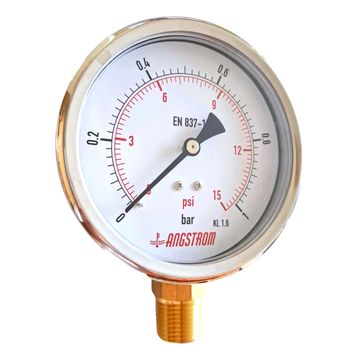

1bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/1bar/15psi

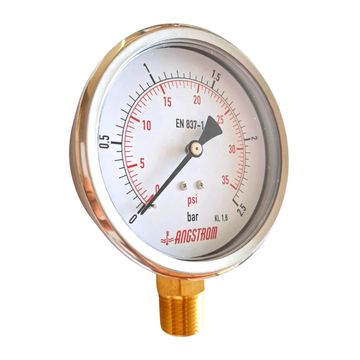

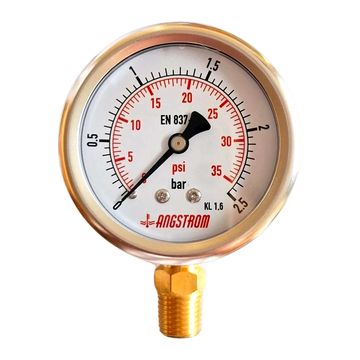

2.5bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/2.5bar/35psi
5bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/5bar/70psi
5bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/5bar/70psi

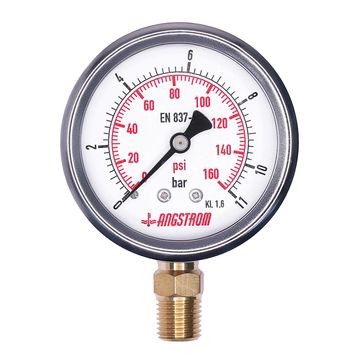

11bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/11bar/160psi
16bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi
20bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/20bar/300psi

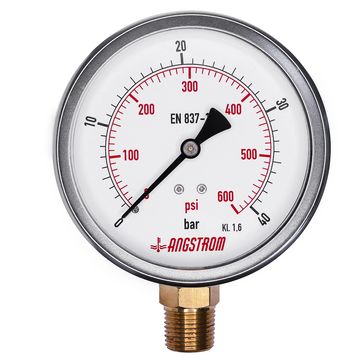

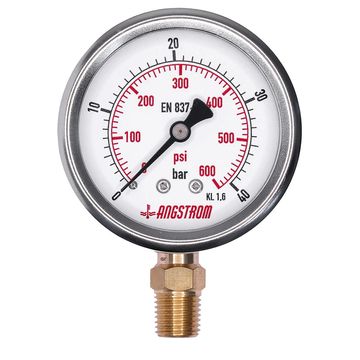

40bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/40bar/600psi

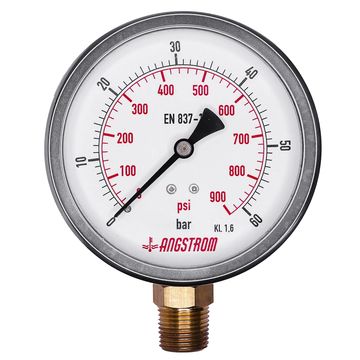

60bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/60bar/900psi

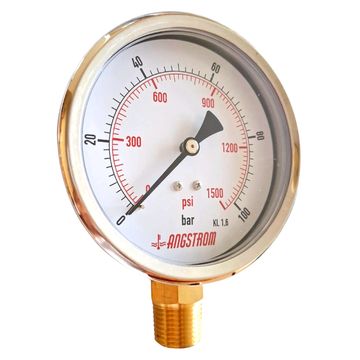

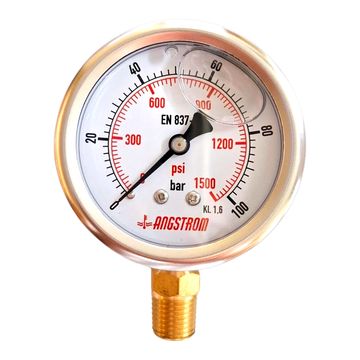

100bar Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/100bar/1500psi
3000PSI Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/3000psi/200bar

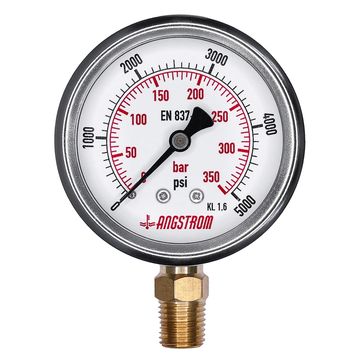

5000PSI Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/5000psi/350bar

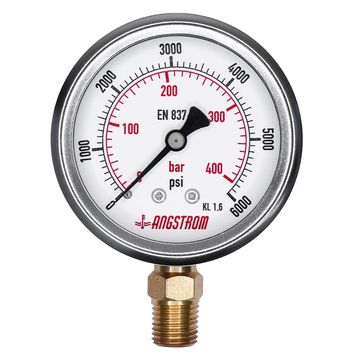

6000PSI Pressure Gauge 2.5" Stainless Steel
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/6000psi/400psi

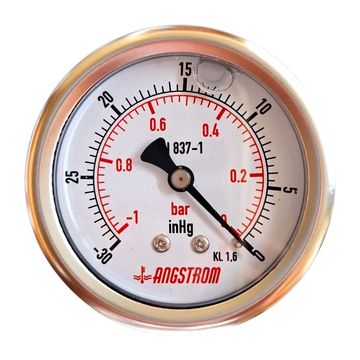

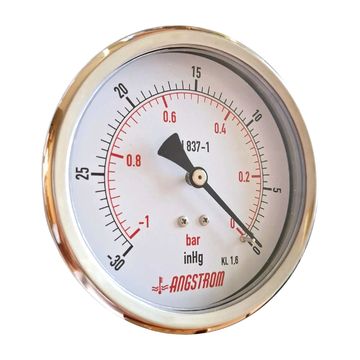

-30inHg Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/30inHg/-1bar

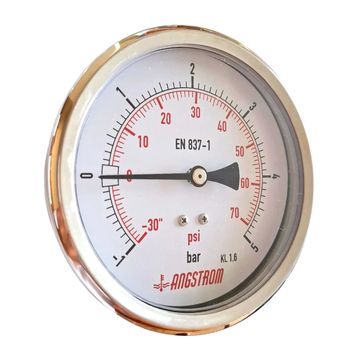

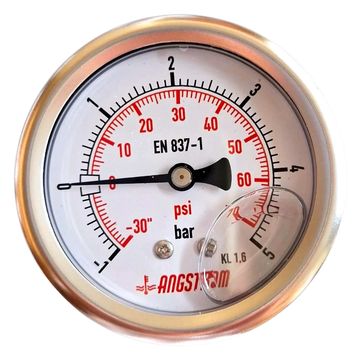

-1/5bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: -1/5bar/70psi

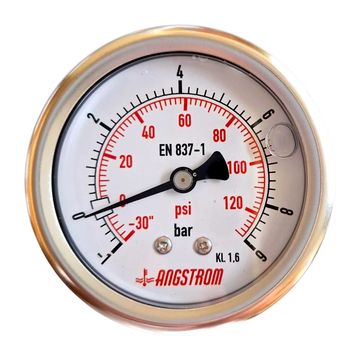

-1/9bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: -1/9bar/120psi
1bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/1bar/15psi
2.5bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/2.5bar/35psi
5bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/5bar/70psi
7bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/7bar/100psi

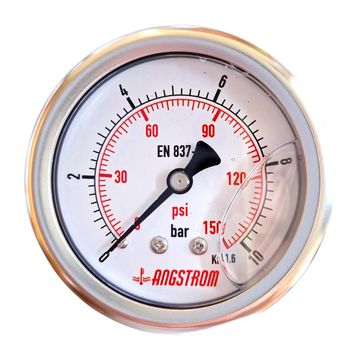

10bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/10bar/150psi

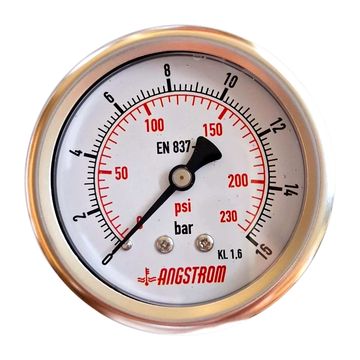

16bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi
25bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/25bar/350psi
40bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/40bar/600psi
60bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/60bar/900psi

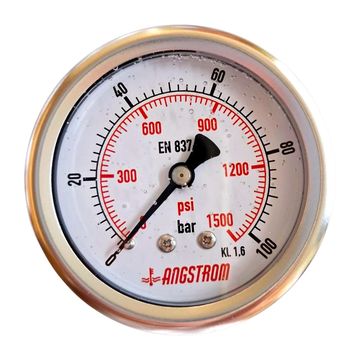

100bar Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/100bar/1500psi
3000PSI Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/3000psi/200bar
5000PSI Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/5000psi/350bar
6000PSI Pressure Gauge 2.5" Stainless Steel (Center Back Mount)
Dial: 2.5" 63mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/4" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/6000psi/400bar
SS Series Pressure Gauges 4"
-30inHg Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/-30inHg/-1bar
-1/5bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: -1/5bar/70psi
-1/9bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: -1/9bar/120psi
1bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/1bar/15psi
2.5bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/2.5bar/35psi

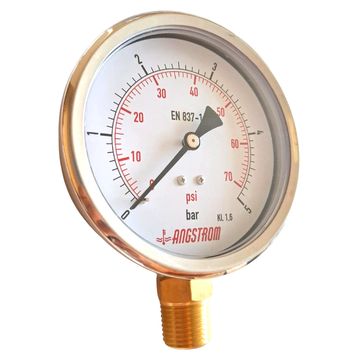

5bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/5bar/70psi

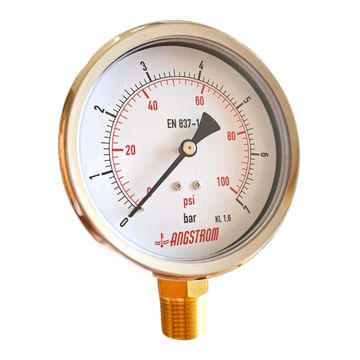

7bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/7bar/100psi
10bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/10bar/150psi
16bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi

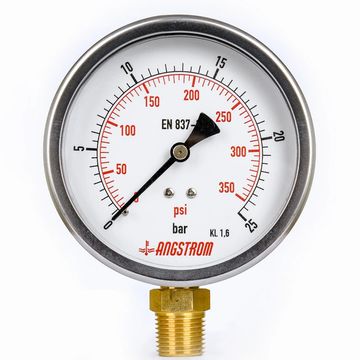

25bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/25bar/350psi
40bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/40bar/600psi
60bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/60bar/900psi
100bar Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/100bar/1500psi
3000PSI Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/3000psi/200bar
5000PSI Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/5000psi/350bar
6000PSI Pressure Gauge 4" Stainless Steel
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/6000psi/400bar
-30inHg Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/-30inHg/-1bar
-1/5bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: -1/5bar/70psi
-1/9bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: -1/9bar/120psi
1bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/1bar/15psi

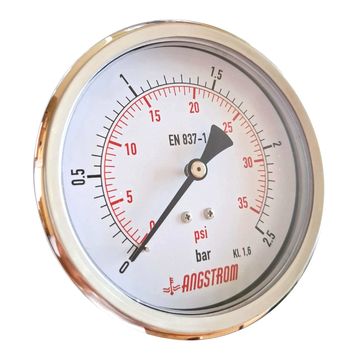

2.5bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/2.5bar/35psi

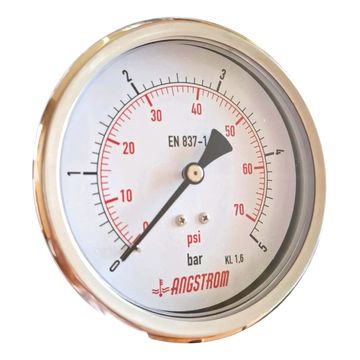

5bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/5bar/70psi

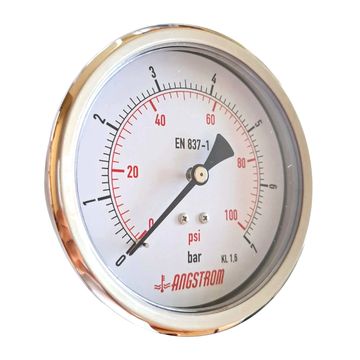

7bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/7bar/100psi
10bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/10bar/150psi

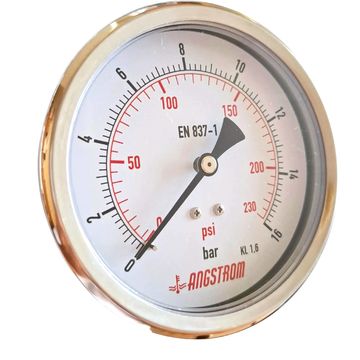

16bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/16bar/230psi

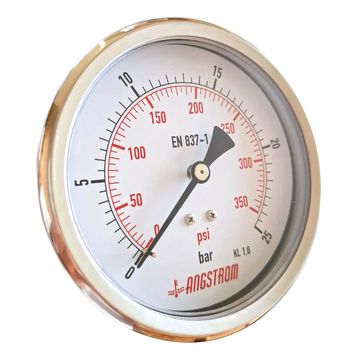

25bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/25bar/350psi

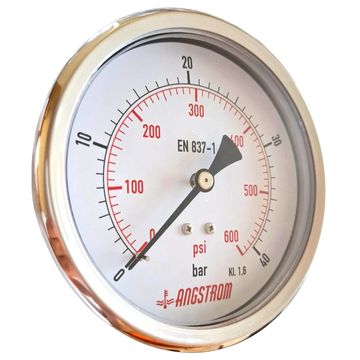

40bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/40bar/600psi
60bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/60bar/900psi

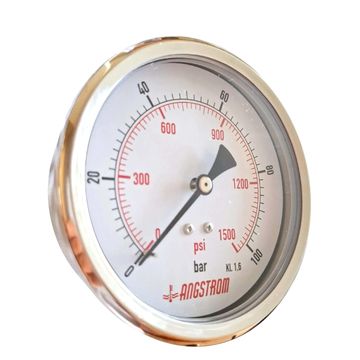

100bar Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/100bar/1500psi
3000PSI Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/3000psi/200bar
5000PSI Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/5000psi/350bar
6000PSI Pressure Gauge 4" Stainless Steel (Center Back Mount)
Dial: 4" 100mm
Case: 304 Stainless Steel (Liquid Fillable)
Window: PC
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/6000psi/400bar
Heavy DutY Pressure Gauges
HD Series Pressure Gauges 6"
-30inHg Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/-30inHg/-1bar
-1/5bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: -1/5bar/70psi
-1/9bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: -1/9bar/120psi
5bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/5bar/70psi
7bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/7bar/100psi
10bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/10bar/150psi
16bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/16bar/230psi
25bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/25bar/350psi
40bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/40bar/600psi
60bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/60bar/900psi
100bar Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/100bar/1500psi
3000psi Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/3000psi/200bar
5000psi Pressure Gauge 6" Stainless Steel
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/5000psi/350bar
-30inHg Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/-30inHg/-1bar
-1/5bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: -1/5bar/70psi
-1/9bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: -1/9bar/120psi
5bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/5bar/70psi
7bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/7bar/100psi
10bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/10bar/150psi
16bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/16bar/230psi
25bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/25bar350psi
40bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/40bar/600psi
60bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/60bar/900psi
100bar Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/100bar/1500psi
3000psi Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/3000psi/200bar
5000psi Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/5000psi/350bar
6000psi Pressure Gauge 6" Stainless Steel (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel w/ blowout back plug (Liquid Fillable)
Window: Safety Glass
Pointer: Adujtable pointer
Movement: Bourdon Tube Brass
Connection: 1/2" Brass NPT
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/6000psi/400bar
SD Series Pressure Gauges 2.5"
10,000psi Pressure Gauge Stainless Steel 2.5"
Dial: 2.5" 63mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 2.5"
Dial: 2.5" 63mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/15000psi/1000bar
10,000psi Pressure Gauge Stainless Steel 2.5" (Center Back Mount)
Dial: 2.5" 63mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 2.5" (Center Back Mount)
Dial: 2.5" 63mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Center Back Mount (CBM)
Accuracy: 1.6% FS
Scale: 0/15000psi/1000bar
SD Series Pressure Gauges 4"
10,000psi Pressure Gauge Stainless Steel 4"
Dial: 4" 100mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 4"
Dial: 4" 100mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1.6% FS
Scale: 0/15000psi/1000bar
10,000psi Pressure Gauge Stainless Steel 4" (Lower Back Mount)
Dial: 4" 100mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable Pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Back Mount (LBM)
Accuracy: 1.6% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 4" (Lower Back Mount)
Dial: 4" 100mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable Pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Back Mount (LBM)
Accuracy: 1.6% FS
Scale: 0/15000psi/1000bar
SD Series Pressure Gauges 6"
10,000psi Pressure Gauge Stainless Steel 6"
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 6"
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Mount (LM)
Accuracy: 1% FS
Scale: 0/15000psi/1000bar
10,000psi Pressure Gauge Stainless Steel 6" (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable Pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/10000psi/700bar
15,000psi Pressure Gauge Stainless Steel 6" (Lower Back Mount)
Dial: 6" 160mm
Case: Heavy Duty 304 Stainless Steel (Liquid Fillable)
Window: Safety Glass
Pointer: Adjustable Pointer
Movement: Bourdon Tube 316 Stainless Steel
Connection: 1/2" NPT 316 Stailess Steel
Mount: Lower Back Mount (LBM)
Accuracy: 1% FS
Scale: 0/15000psi/1000bar
